10076С: 100:1 High Voltage passive probe.

Special Price CHF 537,04 Regular Price CHF 548,00 Excl. 7.7% VATexcl. Shipping
In stock
SKU
7002834
Category
Accessories

100:1 500 MHz 3.7 KV high voltage passive probe.

Delivery time: approx. 4 weeks

KEYSIGHT - 10076C

The Keysight 10076C 3.7 kVpk, 100:1 passive probe gives you the voltage and bandwidth you need for making high-voltage measurements. Its compact design makes it easier to probe today's small power electronics components, and its rugged construction means it can withstand rough handling without breaking.
Compatible with Keysight 1000, 2000 X-, 3000 X-, 4000 X-, 6000 X-, 5000, 6000, 7000, 8000, 9000 and S Series oscilloscopes.

Key features:
- Bandwidth (-3 dB): 500 MHz
- Risetime (calculated): <0.7 ns
- Attenuation ratio: 100:1
- Input resistance: 66.7 MΩ (when terminated into 1 MΩ) / Input capacitance: 3 pF (approximate)
- Compensation range: 6-19 pF
- Maximum input: 3,700 Vpk, 2,650 Vrms, 2,650Vdc (mains isolated)
- 1,000 Vpk (dc + peak ac) CAT II
- Length: 1.8 m
- Probe ID: Yes

Includes:
- 1x retractable hook tip,
- 1x ground-bayonet,
- 1x IC probing tip,
- 1x alligator ground lead,
- 1x spring ground tip and a compensation screwdriver

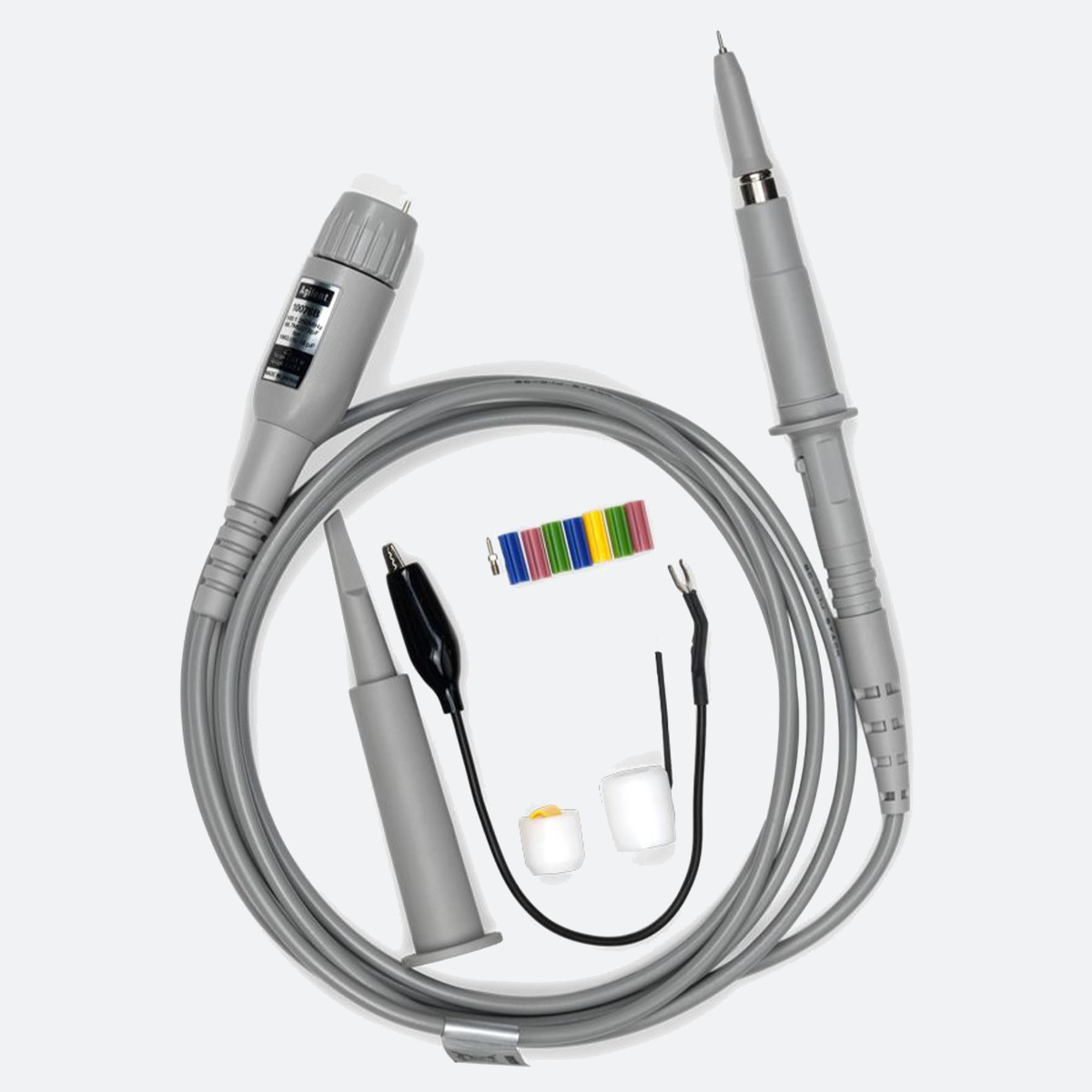

Keysight_10076C_1_CControls
10076С: 100:1 High Voltage passive probe.
Additional Information
CategoryAccessories
BrandKeysight Technologies
T&M Accessory TypePassive Probe
