CPX400DP

CHF 1.492,00 Excl. 7.7% VATexcl. Shipping
In stock
SKU
7001208
Category
Power Supplies

Bench/System/ATE Programmable DC Power Supply Dual Outputs, 2× 60 V / 20 A, 420 W, USB, RS-232 & LAN/LXI interfaces, GPIB optional

Delivery time: approx. 3 weeks

TTI - CPX400DP

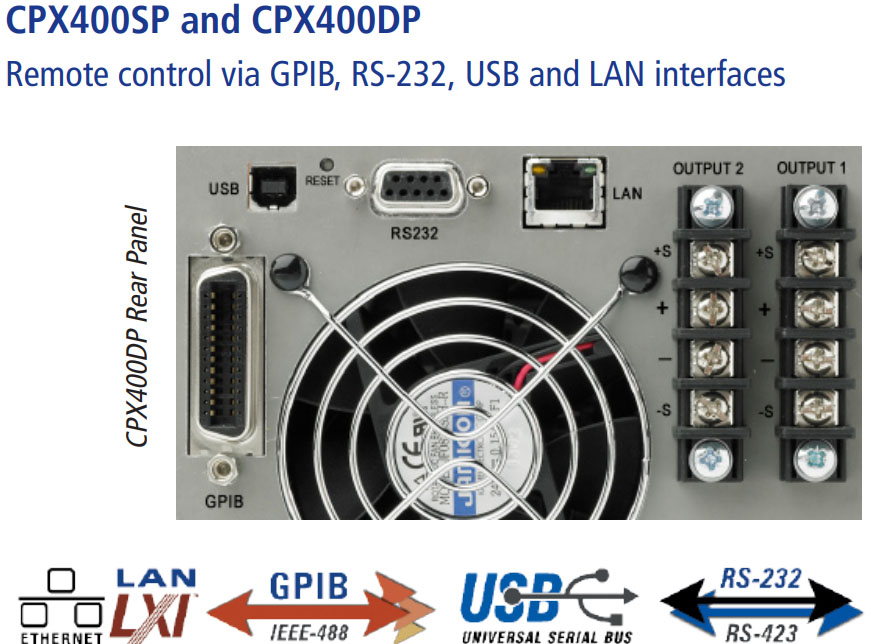

The CPX400D and CPX400DP are the highest power variants of the CPX series.PowerFlex regulation enables the 840 watts of total power to be configured to suit each specific application. The two 420 watt outputs can each supply up to 60 volts or up to 20 amps. Please refer to the adjacent power curve chart. Isolated tracking enables the outputs to be wired in series or parallel whilst controlled from a single voltage adjustment for up to 120 volts or 40 amps. The CPX400DP includes rear terminals and USB, RS232 and LXI compliant LAN interfaces with GPIB available as an option.

Key features

  • PowerFlex design gives variable voltage and current combinations within a maximum power range
  • Up to 60 volts and up to 20 amps
  • 180 watts or 420 watts maximum per output
  • Isolated outputs can be wired in series or parallel
  • Constant voltage or constant current operation
  • Settings Locking (S-Lock)
  • PowerFlex or fixed-range operation
  • Variable OVP trips
  • Selectable remote sense terminals
  • Compact quarter or half rack 3U case size
  • RS-232, USB & LXI compliant LAN
  • GPIB Option
Customer Questions
No Questions
Please, mind that only logged in users can submit questions
CPX400DP
Additional Information
CategoryPower Supplies
BipolarNo
regenerativeNo
Brandaim TTi
Output TypeDC
Max. Voltage Ch. 1 [V]60
Max. Current Ch. 1 [A]20
Max. Voltage Ch. 2 [V]60
Max. Current Ch. 2 [A]20
Total Max. Power [W]840
Com. InterfaceUSB, LAN (LXI), GPIB, RS-232
SenseNo
