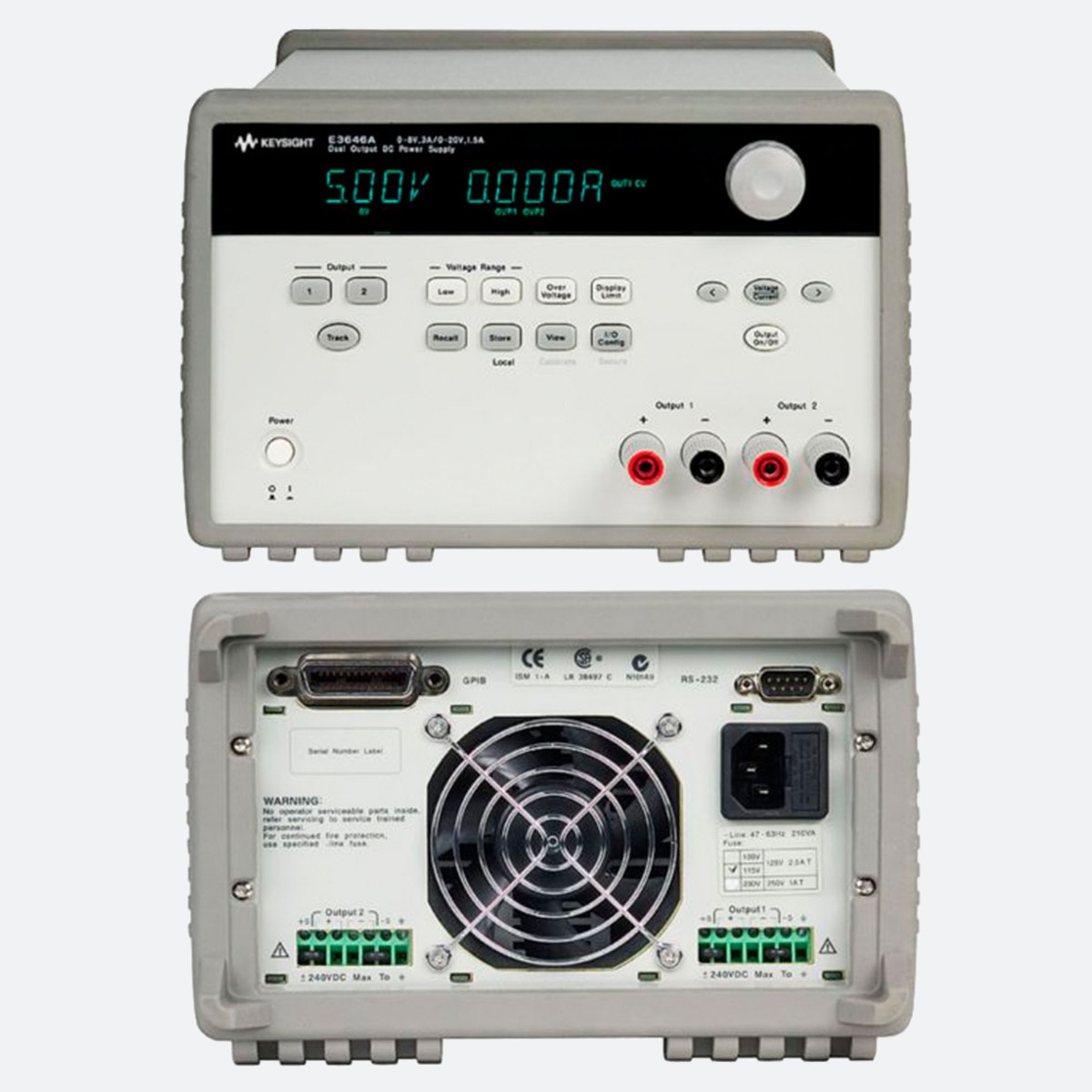

E3646A
60W Dual-Channel Programmable DC Power Supply with Dual-Range (8V/3A or 20V/1.5A max. each channel(.
KEYSIGHT - E3646A
More Voltage and Current Combinations With Dual Range
The E3646A Series bench power supply gives you total of 2 channels of 30W power output each along with dual range flexibility. Each output has a low and high voltage range. The low voltage range allows the power supply to output more current. E3646A with two outputs offers tracking feature to allow the two outputs to operate independently or work as a pair.
- Low output noise with ripple and noise < 500 µVrms
- Stable output, load regulation < 0.01%
- Meter accuracy better than 0.05%
- Store and recall up to five different operating states
- Highly visible vacuum fluorescent display
- Dual-channel
- Connectivity: RS232 and GPIB.
| Category | Power Supplies |
|---|---|
| Bipolar | No |
| regenerative | No |
| Brand | Keysight Technologies |
| Output Type | DC |
| Max. Voltage Ch. 1 [V] | 8 |
| Max. Current Ch. 1 [A] | 3 |
| Max. Voltage Ch. 2 [V] | 20 |
| Max. Current Ch. 2 [A] | 1.5 |
| Max. Voltage Ch. 3 [V] | 8 |
| Max. Current Ch. 3 [A] | 3 |
| Max. Voltage Ch. 4 [V] | 20 |
| Max. Current Ch. 4 [A] | 1.5 |
| Total Max. Power [W] | 60 |
| Com. Interface | USB, GPIB |
| Sense | Yes |
