GOM-804

GW INSTEK - GOM-804

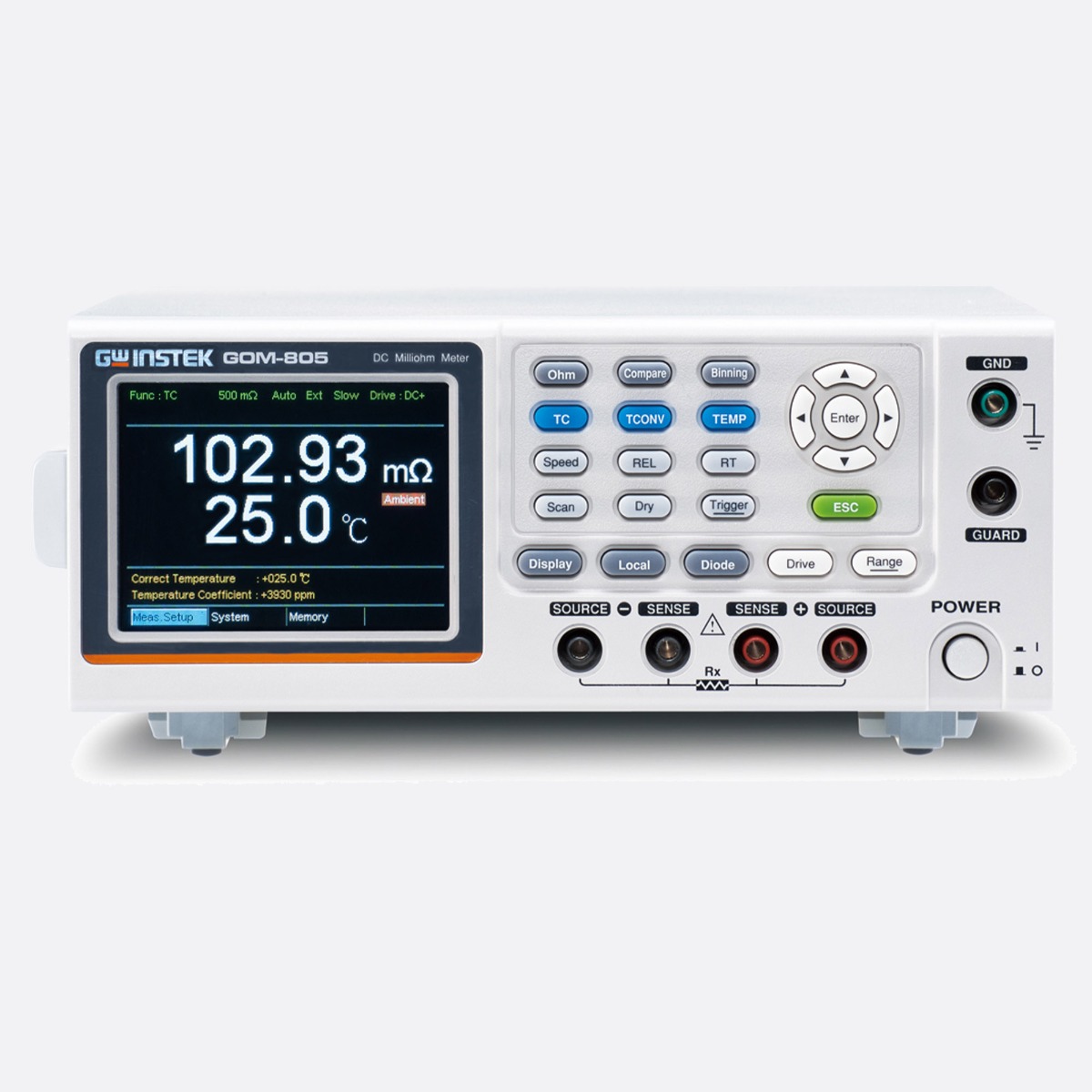

The GOM-805 features 3.5-inch TFT display, maximum 50,000 counts measurement display, the rapid sampling rate of 60 readings per second, optimum 0.05% measurement precision, four wire measurement method as well as the temperature measurement and temperature compensation measurement function to meet the requirement of low resistance measurement application. The GOM-805 also includes various drive modes and Dry circuit for contact resistance measurement applications. More features, including 20 sets of panel setting memory and many external control interface such as RS-232C, USB, Handler/Scan/EXT IO or GPIB greatly elevate GOM-805 milliohm meter’s convenience on practical applications.

Key features

• 50000 counts
• 3.5” (320×240) TFT LCD display
• High accuracy of 0.05 % precision
• 1 Amp test current, 0.1 µΩ resolution
• Fast measurement of 60 readings per second
• Four wire resistance measurement
• Temperature compensation measurement function
• Delayed measurement
• 20 sets of panel setting memory
• Dry circuit
• Drive modes: DC+/DC-, Pulsed, PWM, Zero, Standby
• Interface: USB device, RS-232C, Handler/Scan/EXT I/O, and GPIB
