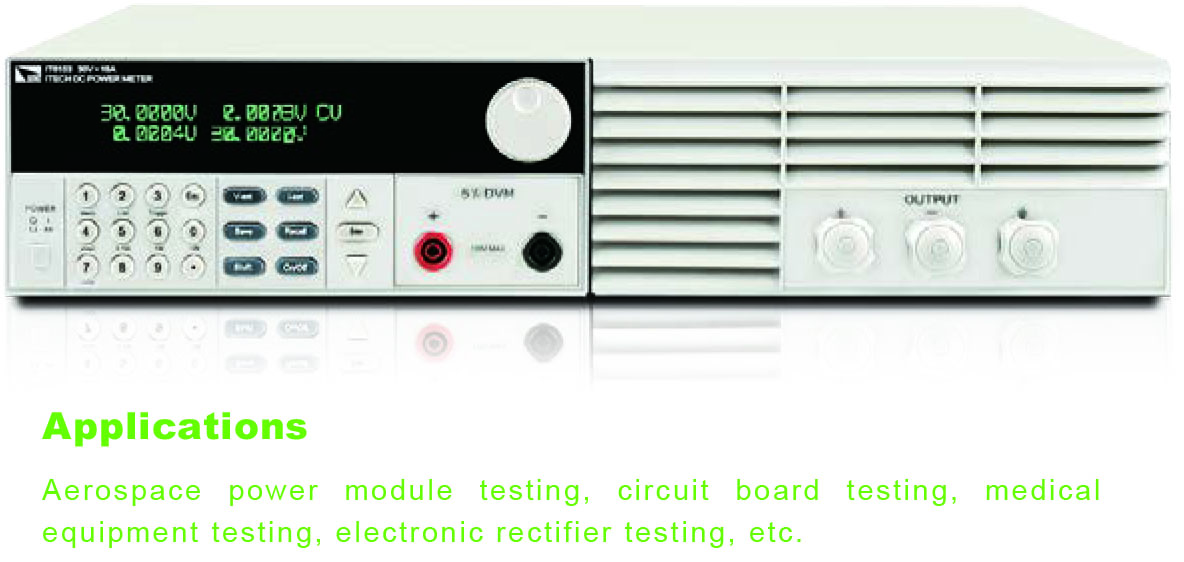

DC Power Supply 0-60V/0-9A, 540W
ITECH - IT6154
The IT6100 series guarantees accurate measurements with 0.1mV/0.1mA high resolution and high accuracy.
With high-speed List mode it generates voltage waveforms to meet high-speed testing needs.
The IT6100 series has a built-in 5 1/2 digital voltmeter and milliohm meter, which can measure additional signals.
The IT6100 series supports SCPI communication protocol, GPIB/USB/RS232 interfaces are optional and can be added with external adapters.
Consult the datasheet for a complete list of functions and features.
- Linear programmable power supply
- High-brightness VFD display
- Low ripple and low noise
- Built-in 5 1/2 digital voltmeter
- Supports SCPI communication protocol
- Optional GPIB/USB/RS232 interfaces
- High accuracy and high resolution
- PC monitoring software
- List mode operation, fast output voltage and current adjustment
- Suitable for 19" standard rack installation
|Com. Interface||USB, GPIB, RS-232|
