N2804A: 300-MHz High Voltage Differential Probe

CHF 2.949,00 Excl. 7.7% VATexcl. Shipping
In stock
SKU
7007289
Category
Accessories

300 MHz 100:1 differential probe, 4 MΩ, 4 pF, ± 300 V DC+peak AC.

Delivery time: approx. 4 weeks

KEYSIGHT - N2804A

The N2804A 300-MHz differential probe provides the superior differential signal measurements required for today’s high-speed power measurements such as measuring characteristics of switching power devices, DC-DC converters, class D amplifiers or automotive buses. The probe offers 100:1 attenuation ratio, allowing it to be used adequate for up to +/-300V DC+peakAC of high voltage differential measurements with high CMRR. The differential probe has a differential input resistance of 4 MΩ and low input capacitance of 4 pF to minimize circuit loading. The probe comes with a pair of extension leads (30 cm long) with a damping resistor built in to damp out the in-band resonance and provide flat frequency response even with the extension leads and the probe tip accessories used. The probe is powered by Keysight’s oscilloscope AutoProbe interface.

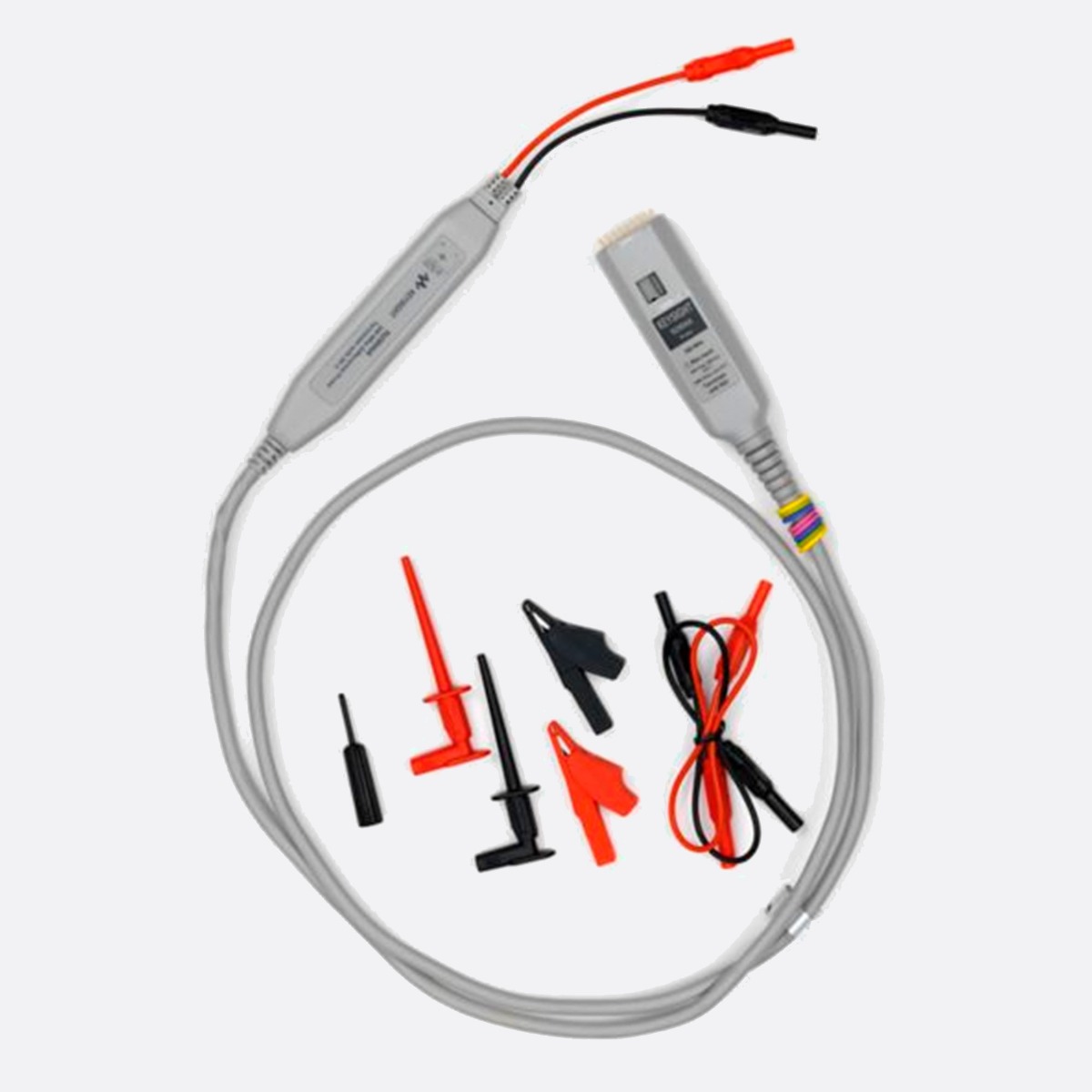

Keysight_N2804A_front_Ccontrols
N2804A: 300-MHz High Voltage Differential Probe
Additional Information
CategoryAccessories
BrandKeysight Technologies
T&M Accessory TypeActive Probe
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Please, mind that only logged in users can submit questions
Keysight_N2804A-N2805A_Datasheet_Ccontrols
Type: pdf
Size: 955.13 kB
