CHF 5.232,00 Excl. 7.7% VATexcl. Shipping
In stock
Power Supplies

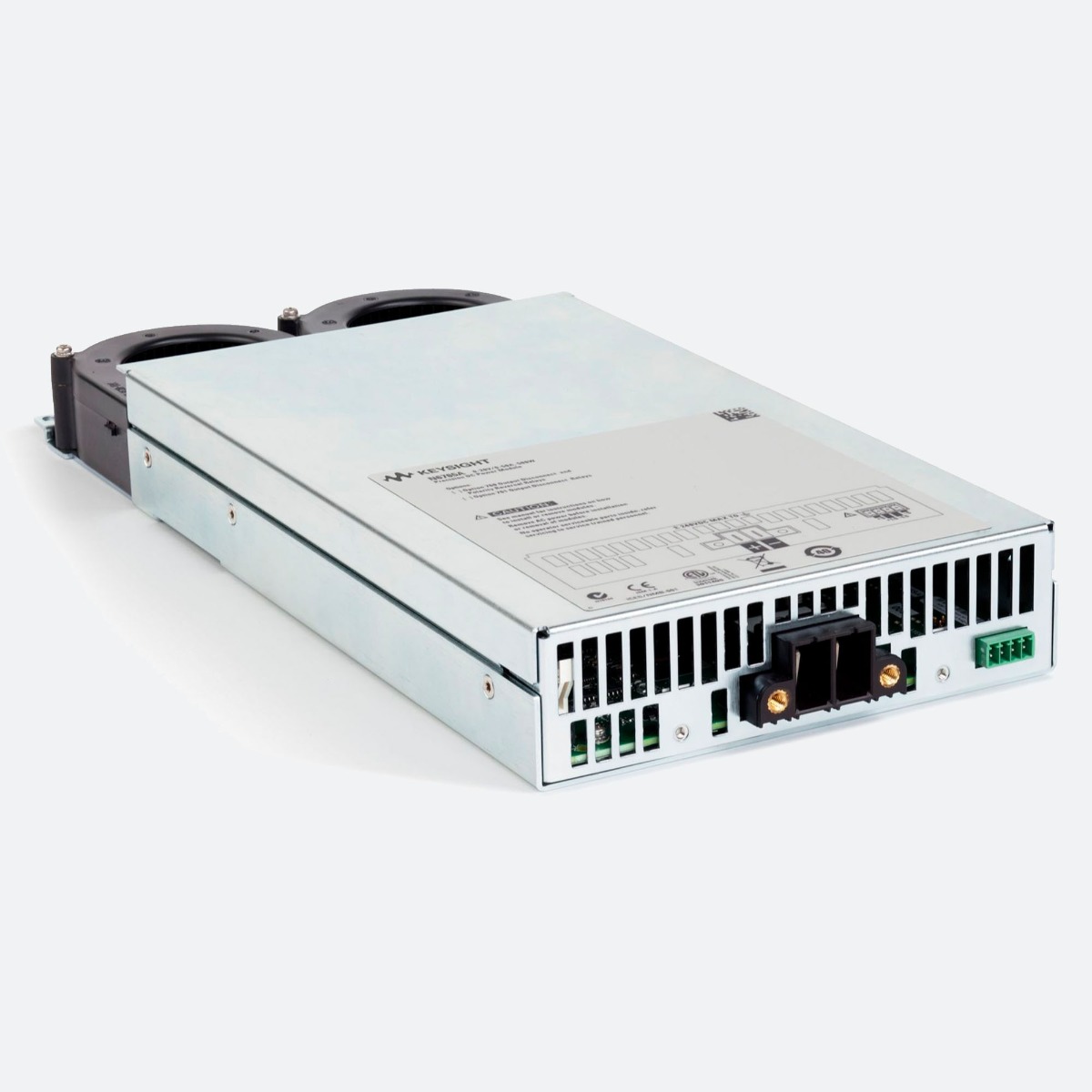

Precision DC power module, 20 V, 50 A, 500 W.

The Keysight N6760 Series of precision DC power modules provides precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and capture those measurements in an oscilloscope-like data buffer.

Delivery time: approx. 11 weeks


Keysight basic modules provide stable output, device protection, and accurate measurements. A single range allows programming voltages and currents from 0 V and 0 A to their maximum voltage and current rating. Use 2-wire local sense or 4-wire remote sense to improve regulation. All modules feature a quick disconnect connector.

Key features:

  • Programmable output voltages: 0 to 150 V
  • Output power: 50 to 300 W
  • Voltage accuracy: 0.1 % + 19 mV (5 V output)
  • Ripple and noise 10 mV (5 V output)
  • Up and down-programming with resistive load typically 20 ms
  • Overvoltage, overcurrent, and overtemperature protection
  • Basic modules are single wide allowing four per mainframe
  • Modules can operate at lower output power to stay within mainframe rating
  • Modules include a quick disconnect connector
Additional Information
CategoryPower Supplies
BrandKeysight Technologies
Output TypeDC
Max. Voltage Ch. 1 [V]20
Max. Current Ch. 1 [A]50
Max. Voltage Ch. 2 [V]0
Max. Current Ch. 2 [A]0
Max. Voltage Ch. 3 [V]0
Max. Current Ch. 3 [A]0
Max. Voltage Ch. 4 [V]0
Max. Current Ch. 4 [A]0
Total Max. Power [W]500
Com. InterfaceUSB, LAN, LAN (LXI), GPIB
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Please, mind that only logged in users can submit questions
Keysight N6700 Series Datasheet
Type: pdf
Size: 1.06 MB
