N6784A

CHF 5.333,00 Excl. 7.7% VATexcl. Shipping
In stock
SKU
7003818
Category
Power Supplies

4-Quadrant General-Purpose Source / Measure Unit, ±20 V, ±1 A or ±6 V, ±3 A, 20 W

Delivery time: approx. 5 weeks

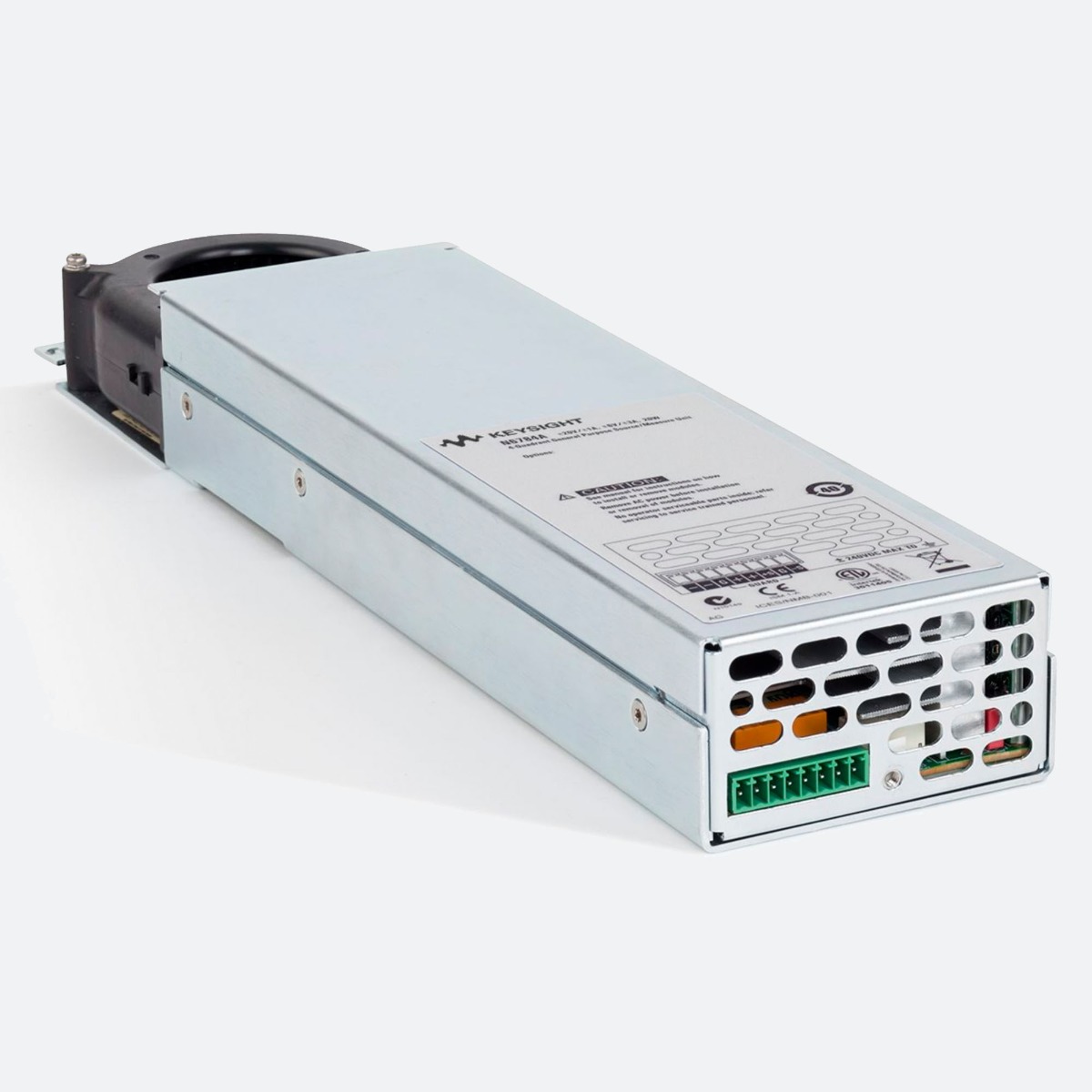

KEYSIGHT - N6784A

The Keysight N6784A is a source/measure unit (SMU) designed for general-purpose precision sourcing and measurement. General-purpose applications can span many different industries and many different devices under test (DUTs). The N6784A SMU is a versatile tool designed to tackle many of these general-purpose applications. Its glitch-free operation ensures safe usage with the DUT during output and measurement range changes, even with capacitances of up to 150 µF. Its 4-quadrant operation enables it to act as a bipolar power supply or a bipolar electronic load, for added versatility. When using the N6784A SMU, engineers can be confident that they have an all-around general-purpose tool for their test systems or lab bench.

This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 30 different DC power modules, ranging in capability from basic to high precision, and in power from 20−300 W.

Key features
> For use with the N6700 Series mainframes (USB, LAN (LXI-C), GPIB): Low profile MPS or DC Power Analyzer
> DC output ratings: ±20 V, ±1 A or ±6 V, ±3 A, 20 W
> Voltage accuracy: 0.025 % + 1.8 mV
> Ripple and noise: 12 mV
> Up and down-programming with resistive load typically 20 ms
> Overvoltage, overcurrent, and overtemperature protection
> Modules can operate at lower output power to stay within mainframe rating
> Modules include a quick disconnect connector

Other features and benefits
> Glitch-free sourcing and measurement ― change output and measurement ranges without any glitches
> 4-quadrant operation ― perform as a bipolar voltage or current source or as a bipolar CV or CC electronic load
> Four current programming ranges — precisely source current down µA
> Four current measurement ranges ― precisely capture the current levels of the DUT during different modes of operation
> Excellent transient response ― keep voltage or current stable during high-speed load changes
> Fast modulation of DC ― create waveforms up to 100 kHz to stimulate or load down the DUT
> High-speed digitized measurements ― capture/view the power consumption of the DUT up to every 5 µs with built-in 200 kHz digitizer

Customer Questions
No Questions
Please, mind that only logged in users can submit questions
N6784A
Additional Information
CategoryPower Supplies
BipolarNo
regenerativeNo
BrandKeysight Technologies
Output TypeDC
Max. Voltage Ch. 1 [V]20
Max. Current Ch. 1 [A]3
Max. Voltage Ch. 2 [V]0
Max. Current Ch. 2 [A]0
Max. Voltage Ch. 3 [V]0
Max. Current Ch. 3 [A]0
Max. Voltage Ch. 4 [V]0
Max. Current Ch. 4 [A]0
Total Max. Power [W]20
Com. InterfaceUSB, LAN, LAN (LXI), GPIB
SenseNo
